اللون
- أبيض
HARDWARE FEATURES

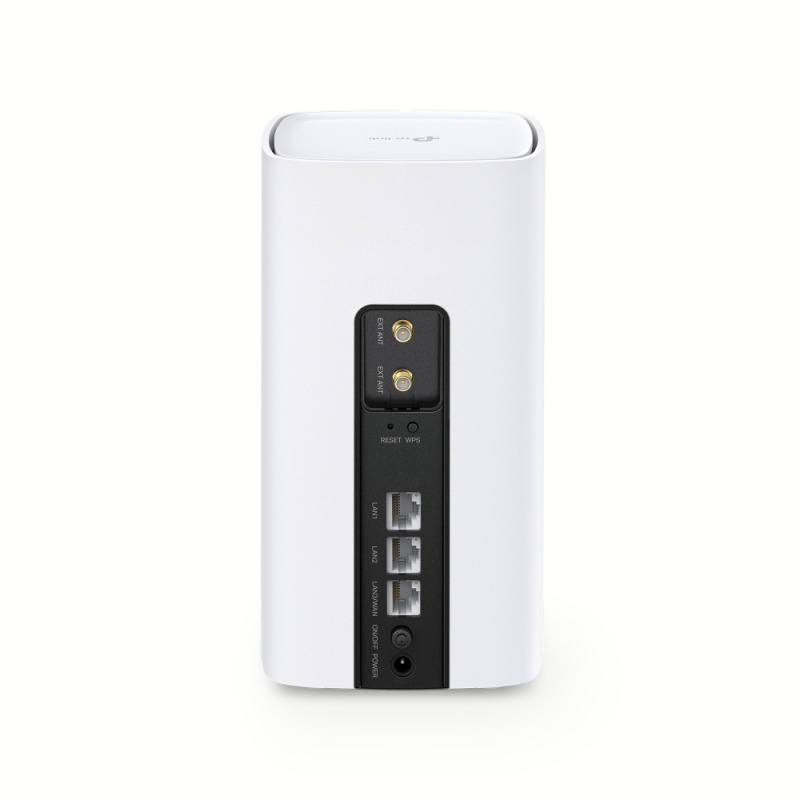

Interface | 1 × 10/100/1000 Mbps LAN/WAN Port 2 × 10/100/1000 Mbps LAN Ports 1 × Nano SIM Card Slot 2 × 5G/4G External Antenna Ports |
---|---|
Button | WPS Button, Reset Button, Power On/Off Button, Wi-Fi On/Off Button |
External Power Supply | Power Adapter: Input Power 100-240v~50/60 Hz 0.6A Output parameter 12VDC 2A |
Dimensions ( W x D x H ) | 3.9 × 3.9 × 7.5 in ( 99 × 99 × 190 mm) |
Antenna | 8 × 5G/LTE Internal Antennas 2 × Wi-Fi Internal Antennas |
SOFTWARE FEATURES
Quality of Service | Prioritizes network traffic by device or application |
---|---|
Security | DoS, IPv4 SPI Firewall, IPv6 Firewal, IP and MAC Address Binding, Access Control |
WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
Management | TP-Link Cloud, Local Management, Remote Management |
DHCP | Server, DHCP Client List, Address Reservation |
Port Forwarding | ALG, Virtual Server, Port Triggering, UPnP, DMZ |
Dynamic DNS | TP-Link, DynDns, NO-IP |
VPN | PPTP VPN, IPSec VPN , OpenVPN |
Access Control | Parental Control, Local Management Control |
Firewall Security | DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding |
Protocols | IPv4, IPv6 |
Guest Network | 2.4 GHz Guest Network x 1 5 GHz Guest Network x 1 |
WIRELESS FEATURES
Wireless Standards | IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
---|---|
Frequency | 2.4 GHz and 5 GHz |
Signal Rate | 574 Mbps at 2.4 GHz, 1201 Mbps at 5 GHz |
Reception Sensitivity | 5GHz: 11a 54M:-80 dBm 11ax HE20:-68 dBm 11ax HE40:-65 dBm 11ax HE80:-62 dBm 11ac VHT20:-76 dBm 11ac VHT40:-72 dBm 11ac VHT80:-68 dBm 11n HT20:-79 dBm 11n HT40:-75 dBm 2.4GHz 11g 54M:-78 dBm 11ax HE20:-65 dBm 11ax HE40:-62 dBm 11ac VHT20:-73 dBm 11ac VHT40:-68 dBm 11n HT20:-75 dBm 11n HT40:-72 dBm |
Transmit Power | <23dBm (5.15GHz~5.35GHz) <30dBm (5.47GHz~5.71GHz) <20dBm (2.4GHz) |
Wireless Functions | Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
WAN Failover | Yes |
Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
Network Type | 5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78 (2100/1800/850/2600/900/800/700/2600/2300/2500/3700/3500 MHz) FDD-LTE: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1500 MHz) TDD-LTE: B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 MHz) DC-HSDPA/HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz) |
OTHERS
Certification | CE, RoHS |
---|---|
Package Contents | 5G AX1800 Wireless Dual-Band Gigabit Router Archer NX200 1.5m Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
System Requirements | Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Nano SIM Card |
Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
* المواصفات السابقة هي قيم نظرية تستند إلى تصميم المنتج. من أجل تقديم معلومات ومواصفات وسمات دقيقة للمنتجات، قد تقوم الشركة المصنعة بإجراء تعديلات لحظية على المواصفات السابقة، حتى تطابق أداء ومواصفات ومؤشرات ومحتويات المنتج الفعلي. تخضع معلومات المنتج إلى التغيير والتعديل دون إخطار.
