اللون
- أسود
مميزات الجهاز
- Dimensions
-
250 × 119 × 43.3 mm(9.8 × 4.7 × 1.7 in)

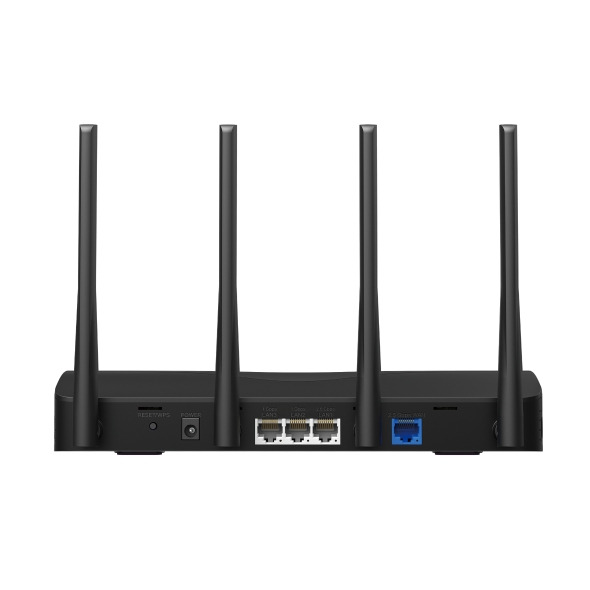

- Interfaces
-
1× 2.5G WAN1× 2.5G LAN2× GE LAN
- Antenna
-
2× 5G External Antennas(5dBi)2× 2.4G External Antennas(4dBi)
- Button
-
1× WPS/ Reset Button
- Installation
-
DesktopWall-mount
- LED
-
1× SYS
- Retail Package Dimension
-
328*261*74mm
- Units per Carton
-
10
- Carton Dimension
-
535*340*385mm
- IPTV
-
IGMP ProxyIGMP SnoopingBridgeTag VLAN
- Power
-
Input：100~240V, 50/60HzOutput: 12V/1.5A
مميزات الوايرليس
- Wi-Fi Class
-
BE3600
- Wi-Fi (2.4 GHz)
-
688Mbps
- Wi-Fi ( 5 GHz)
-
2880Mbps
- Wireless Standards
-
802.11be/ax/ac/a/b/g/n
- Max Channel Width
-
160MHz
- Reception Sensitivity
-
5G:11ac VHT20_MCS0:-97dBm, 11ac VHT20_MCS8:-75dBm 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-70dBm 11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS9:-67dBm 11ac VHT160_MCS0:-88dBm, 11ac VHT160_MCS9:-63dBm11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-66dBm 11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-66dBm 11ax HE80_MCS0:-91dBm, 11ax HE80_MCS11:-63dBm 11ax HE160_MCS0:-87dBm, 11ax HE160_MCS11:-59dBm 11be EHT20_MCS13:-61dBm11be EHT40_MCS13:-59dBm 11be EHT80_MCS13:-55dBm11be EHT160_MCS13:-52dBm
2.4G:11ax HE20 MCS0:-97dBm,11ax HE20 MCS11:-68dBm11ax HE40 MCS0:-95dBm,11ax HE40 MCS11:-65dBm11be EHT20 MCS13:-61dBm,11be EHT40 MCS13:-59dBm
- Max Wi-Fi Modulation
-
4K QAM
- Wireless Security
-
WPA/WPA2/WPA3
- Wireless Functions
-
Guest NetworkIoT NetworkSmart ConnectWireless ScheduleWPSAP IsolationAirtime Fairness
مميزات السوفتوير
- Operation Mode
-
Router/AP mode
- WAN Mode
-
Dynamic IPStatic IPPPPoEPPTPL2TP
- NAT Forwarding
-
Port ForwardingPort TriggeringDMZUPnP
- Protocols
-
IPv4IPv6
- Guest Network
-
2.4G Guest Network5G Guest Network
- Parental Controls
-
Profile SettingsTime ControlPause the InternetWebsite Filtering
- DHCP
-
Address ReservationDHCP Client ListServer
- DDNS
-
MERCUSYSNO-IPDynDNS
- VPN Server
-
OpenVPNPPTPL2TP/IPSecWireGuard
- VPN Client
-
OpenVPNPPTPL2TP/IPSecWireGuard
- Easymesh
-
Easymesh Compatible
- QoS
-
Time SettingsPriority Control
- Security
-
SPI FirewallAccess ControlIP & MAC Binding
- Kill Switch
-
Support
- ISP Feature
-
CWMPISP Preset(Agile Config)Superadmin
- System
-
Firmware UpgradeBackup and RestoreAdministrationSystem LogTime & Language SettingsReboot
- Diagnostics
-
PingTraceroute
- LED Management
-
LED ControlNight Mode
- Device Management
-
MERCUSYS APPWebpage
- Cloud
-
MERCUSYS ID
- Language
-
BulgarianCzechDanishGermanEnglishSpanishFinnishFrenchHungarianItalianJapaneseKoreanDutchNorwegianPolishPortuguesePortuguese - BrazilRomanianRussianSlovakSwedishTurkishUkrainianVietnameseChinese - Taiwan
- Advanced Features
-
Multi-Link Operation (MLO)Multi-RUsOFDMAMU-MIMOBSS ColorBeamforming
مميزات اخرى
- Network Services Enabled by Default
- Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP
DNS DNS • Port: 53 Protocol: TCP & UDP
DHCP Server IP address assignment (DHCP) • Port: 67 Protocol: UDP
App management Manage and configure device through app • Port: 20001 Protocol: TCP • Port: 30001 Protocol: TCP • Port: 20002 Protocol: UDP - Network Services Enabled by Default
-
Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443; Protocol: TCP
DHCP Server
IP address assignment (DHCP)
• Port: 67; Protocol: UDP
DNS
DNS
• Port: 53; Protocol: TCP & UDP
App management
Manage and configure device through app
• Port: 20001; Protocol: TCP
• Port: 20002; Protocol: UDP
داخل العلبة
• BE3600 Wi-Fi 7 Router MR27BE• Power Adapter• Quick Installation Guide• RJ45 Ethernet Cable
