اللون
- أبيض
مميزات الجهاز

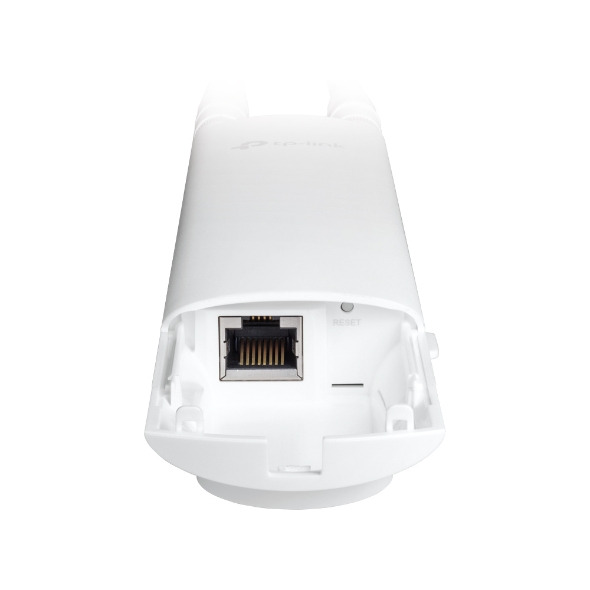

| Interface | 1× Gigabit Ethernet (RJ-45) Port (Support 802.3af/at PoE (Alternative A) and Passive PoE) |
|---|---|
| Button | Reset |
| Power Supply | • 802.3af/at PoE (Alternative A) • 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) |
| Power Consumption | 10.5 W |
| Dimensions ( W x D x H ) | 1.8 × 1.1 × 8.5 in (46 × 26.7 × 214.9 mm) (without antenna & mounting kit) |
| Antenna | • 2.4 GHz: 2× 3 dBi • 5 GHz: 2× 4 dBi |
| Weatherproof Enclosure | IP65 |

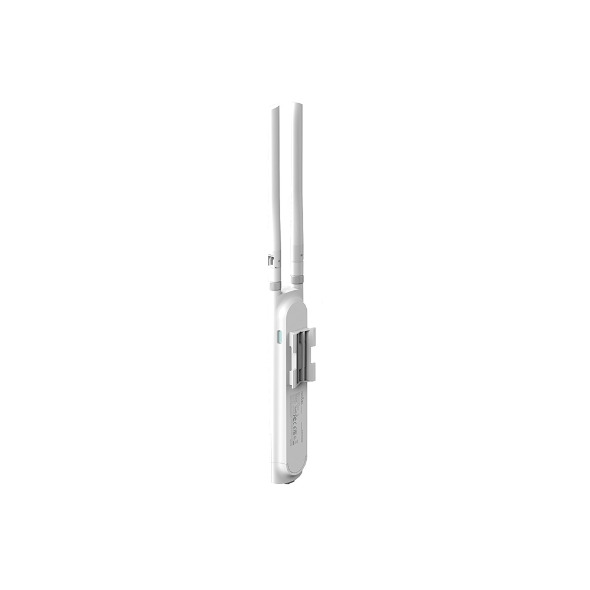

| Mounting | Pole/Wall Mounting (Kits included) |
مميزات الوايرليس
| Concurrent Clients | 220+** |
|---|---|
| Wireless Standards | IEEE 802.11a/b/g/n/ac |
| Frequency | 2.4GHz, 5GHz |
| Signal Rate | • 802.11ac: 5G:6.5 Mbps to 867 Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78 Mbps to 300 Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3) • 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40) • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps • 802.11b: 1, 5.5, 11Mbps • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wireless Functions | • Multiple SSIDs（Up to 16 SSIDs, 8 for each band） • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control （Adjust Transmit Power on dBm） • QoS(WMM) • MU-MIMO • Seamless Roaming* • Omada Mesh* • Airtime Fairness • Beamforming • Band Steering • Load Balance • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client |
| Wireless Security | • Captive Portal Authentication* • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support |
| Transmission Power | • CE: <20 dBm (2.4 GHz, EIRP), <27 dBm(5 GHz, EIRP) • FCC: <23 dBm (2.4 GHz), <22 dBm(5 GHz) |
مميزات اخرى
| Certification | CE, FCC, RoHS |
|---|---|
| Package Contents | • Access Point EAP225-Outdoor • Passive PoE Adapter • Power Cord • Mounting Kits • Installation Guide • Waterproof Ruber Insert • Waterproof Antenna |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | • Operating Temperature: -30–70 ℃ (-22–158 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
* المواصفات السابقة هي قيم نظرية تستند إلى تصميم المنتج. من أجل تقديم معلومات ومواصفات وسمات دقيقة للمنتجات، قد تقوم الشركة المصنعة بإجراء تعديلات لحظية على المواصفات السابقة، حتى تطابق أداء ومواصفات ومؤشرات ومحتويات المنتج الفعلي. تخضع معلومات المنتج إلى التغيير والتعديل دون إخطار.
