اللون
- أبيض
مميزات الجهاز
| Interface | 1× Gigabit Ethernet (RJ-45) Port |
|---|---|
| Button | Reset |
| Power Supply | • 802.3at PoE • 48 V Passive PoE • 12 V / 1 A DC (Power Adapter IS NOT included) |
| Power Consumption | 11.0W (For PoE); 9.9W (For DC) |
| Dimensions ( W x D x H ) | 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) |
| Antenna Type | Internal Omni Antenna • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi |

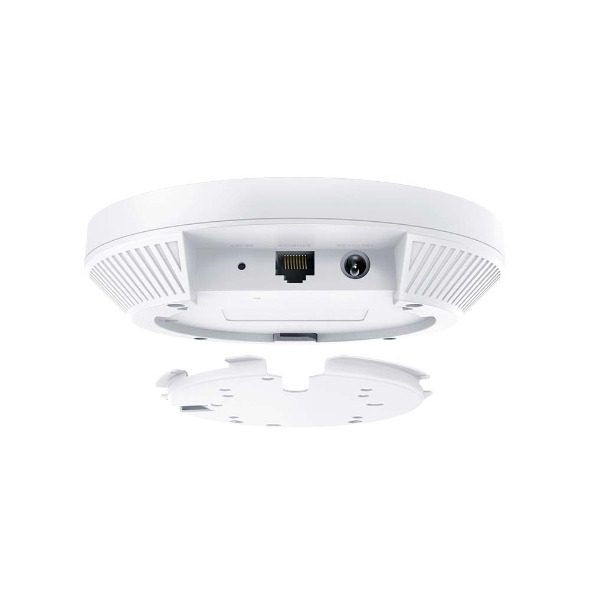

| Mounting | • Ceiling /Wall Mounting (Kits included) • Junction Box Mounting |
مميزات الوايرليس
| Coverage | 115㎡(1250 ft²)*** |
|---|---|
| Concurrent Clients | 250+** |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 1201 Mbps • 2.4 GHz: Up to 574 Mbps |
| Wireless Functions | • 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • Seamless Roaming(802.11k/v/r)§ • Omada Mesh§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client |
| Wireless Security | • Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz band1/2, EIRP) <25 dBm (5 GHz band3) • FCC: <25 dBm (2.4 GHz) <25 dBm (5 GHz) |
مميزات اخرى
| Certification | CE, FCC, RoHS |
|---|---|
| Package Contents | • EAP613 • Ceiling/ Wall Mounting Kits • Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
* المواصفات السابقة هي قيم نظرية تستند إلى تصميم المنتج. من أجل تقديم معلومات ومواصفات وسمات دقيقة للمنتجات، قد تقوم الشركة المصنعة بإجراء تعديلات لحظية على المواصفات السابقة، حتى تطابق أداء ومواصفات ومؤشرات ومحتويات المنتج الفعلي. تخضع معلومات المنتج إلى التغيير والتعديل دون إخطار.
