HARDWARE FEATURES
Processor | 1.7 GHz Quad-Core CPU |
---|---|

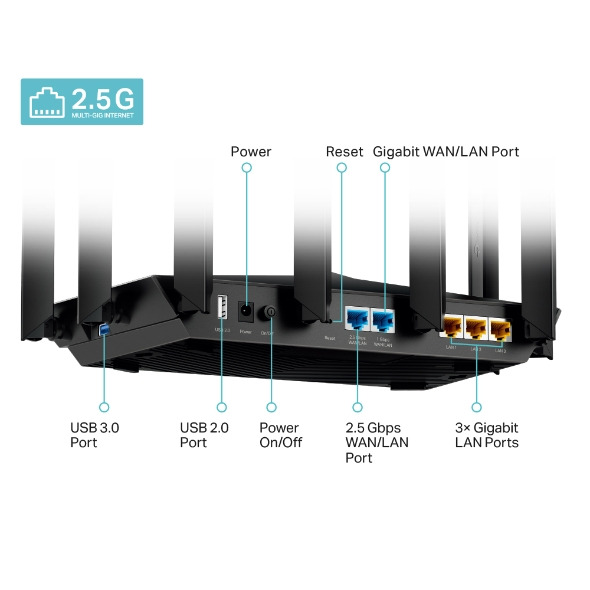

Ethernet Ports | • 1× 2.5 Gbps WAN/LAN Port • 1× 1 Gbps WAN/LAN Port • 3× 1 Gbps LAN Ports |
USB Support | • 1× USB 3.0 Port • 1× USB 2.0 Port • Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 • Supported Functions: FTP Server Media Server Samba Server |
Buttons | • LED On/Off Button • WPS Button • Wi-Fi On/Off Button • Power On/Off Button • Reset Button |
Power | 12 V ⎓ 3.3 A |
SOFTWARE FEATURES
Protocols | • IPv4 • IPv6 |
---|---|
Service Kits | HomeShield Learn More> |
OneMesh™ | OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products> |
Parental Controls | HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports |
WAN Types | • Dynamic IP • Static IP • PPPoE • PPTP • L2TP |
Quality of Service | QoS by Device |
Cloud Service | Auto Firmware Upgrade TP-Link ID DDNS |
NAT Forwarding | • Port Forwarding • Port Triggering • DMZ • UPnP |
IPTV | • IGMP Proxy • IGMP Snooping • Bridge • Tag VLAN |
DHCP | • Address Reservation • DHCP Client List • Server |
DDNS | • TP-Link • NO-IP • DynDNS |
Management | • Tether App • Webpage |
WIRELESS FEATURES
Standards | Wi-Fi 6 • IEEE 802.11ax/ac/n/a 5 GHz • IEEE 802.11ax/n/b/g 2.4 GHz |
---|---|
WiFi Speeds | •AX7800 • 5 GHz-1: 4804 Mbps (802.11ax, HE160) • 5 GHz-2: 2402 Mbps (802.11ax) • 2.4 GHz: 574 Mbps (802.11ax) |
WiFi Range | 4 Bedroom Houses 8× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage 4T4R Multiple streams in the same band strengthen the fault tolerance in transmission |
WiFi Capacity | Very High Tri-Band Allocate devices to different bands for optimal performance 4×4 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Airtime Fairness Improves network efficiency by limiting excessive occupation DFS Access an extra band to reduce congestion 8 Streams Connect your devices to more bandwidth |
Working Modes | • Router Mode • Access Point Mode |
OTHERS
System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
---|---|
Certifications | FCC, CE, RoHS |
Environment | • Operating Temperature: 0℃~40℃ (32℉ ~104℉) • Storage Temperature: -40℃~70℃ (-40℉ ~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
الامان
Network Security | • SPI Firewall • Access Control • IP & MAC Binding • Application Layer Gateway • HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
---|---|
Guest Network | • 1× 5 GHz-1 Guest Network • 1× 5 GHz-2 Guest Network • 1× 2.4 GHz Guest Network |
VPN Server | • OpenVPN • PPTP • L2TP |
VPN Client | • OpenVPN • PPTP • L2TP |
WiFi Encryption | • WPA • WPA2 • WPA3 • WPA/WPA2-Enterprise (802.1x) |
* المواصفات السابقة هي قيم نظرية تستند إلى تصميم المنتج. من أجل تقديم معلومات ومواصفات وسمات دقيقة للمنتجات، قد تقوم الشركة المصنعة بإجراء تعديلات لحظية على المواصفات السابقة، حتى تطابق أداء ومواصفات ومؤشرات ومحتويات المنتج الفعلي. تخضع معلومات المنتج إلى التغيير والتعديل دون إخطار.
