Colour
- White
Camera
Image Sensor | 1/3” Progressive Scan CMOS Starlight Sensor |
---|---|
Lens | Focal Length: 4 mm Aperture: F2.0 Field of View: 88° (Diagonal), 75°(Horizontal), 41°(Vertical) |
Motion Range | Pan Mechanical Range: 340° (360° Pan Coverage) Tilt Mechanical Range: 69° |
Night Vision | 850 nm IR LED (40 ft / 12 m) |
Interface & Button | 1× RESET Button 1× MicroSD Card Slot (Up to 512GB) |
Video & Audio
Maximum Resolution | 3K 5MP (2880×1620 px) |
---|---|
Frame Rate | 15/20/25/30 fps (Default 15fps) |
Video Compression | H.264 |
Live View | Yes |
Image Enhancement | 3D DNR BLC |
Audio Input & Output | Built-in Microphone and Speaker |
Audio Communication | Two-Way Audio with Noise Cancellation |
Siren Volume | 99dB (Level measured at 4-inch/10-cm distance) |
Storage
Local Storage | MicroSD Card Slot on Camera (Up to 512 GB) |
---|---|
Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
Detection and Notifications
AI Detection | Motion Detection Person Detection Line-Crossing Detection Tamper Detection BabyCry Detection Vehicle Detection Pet Detection Meow Detection Bark Detection Glass-Breaking Detection |
---|---|
Activity Zones | Yes |
Output Notification | System Notification System Notification with Snapshot (Tapo Care Services) |
Network
Network Connectivity | Connect via Wi-Fi |
---|---|
Wireless Connectivity | IEEE 802.11b/g/n/ax, 2.4 GHz Wi-Fi |
RTSP | Yes |
ONVIF | Yes |
Security
Security | On-Device Machine Learning 128-bit AES Encryption with SSL/TLS WPA/WPA2-PSK |
---|
Power
Power Source | 9V DC Power Adapter |
---|---|
Input Voltage | 100-240 V, 50/60 Hz |
Output Voltage | 9V, 0.6 A (DC Power) |
General
Smart Integration | Google Assistant, Amazon Alexa |
---|---|
Mounting Options | Tabletop Ceiling-Mounted |
Operating Temperature | 0℃~40℃ |
Storage Temperature | -20℃~70℃ |
Operating Humidity | 10%~90% RH, Non-condensing |
Storage Humidity | 5%~90% RH, Non-condensing |
Dimensions ( W x D x H ) | 3.36 × 3.42 × 4.63 in (85.4 × 86.8 × 117.7 mm) |

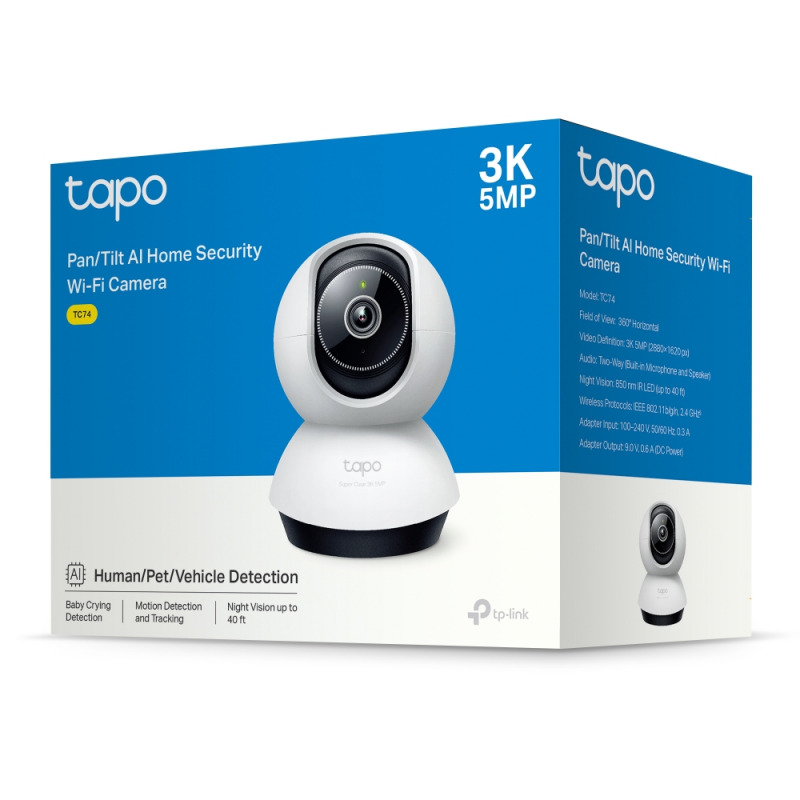

Package Content | TC74 Camera Power Adapter Quick Start Guide Mounting Screws Mounting Anchors Mounting Template Camera Base |
Certifications | CE, FCC, RCM, WEEE, EAC |
*The preceding specifications are theoretical values based on product design. To provide accurate product information, specifications, and features, the manufacture company may make real-time adjustments to the preceding specifications, so that they match the product performance, specifications, indexes, and components of the actual product. Product information is subject to such changes and adjustments without notice.
