Colour
- Black
HARDWARE FEATURES

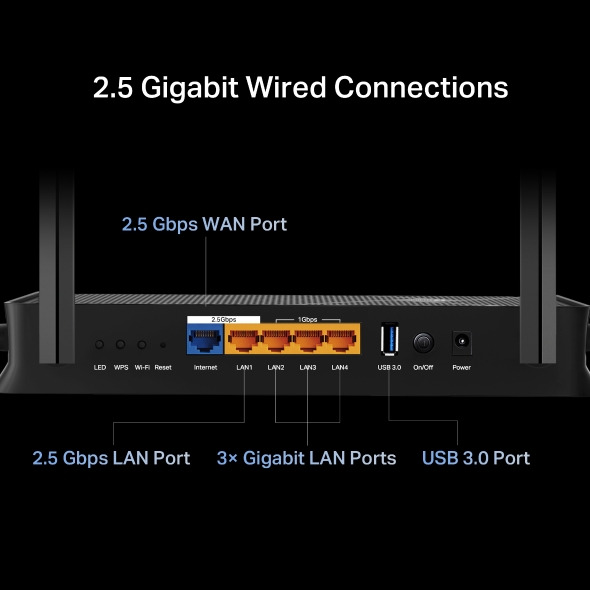

Ethernet Ports | • 1× 2.5 Gbps WAN • 1× 2.5 Gbps LAN • 3× 1 Gbps LAN |
---|---|
USB Support | 1× USB 3.0 • Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 • Supported Functions: FTP Server Media Server Samba Server |
Buttons | • Power On/Off Button • Wi-Fi On/Off Button • LED Button • WPS Button • Reset Button |
Power | 12 V ⎓ 2 A (US) 12 V ⎓ 1.5 A (EU) |
SOFTWARE FEATURES
Protocol | • IPv4 • IPv6 |
---|---|
EasyMesh | Compatible with EasyMesh |
Parental Controls | HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports |
WAN Type | • Dynamic IP • Static IP • PPPoE • PPTP • L2TP |
Quality of Service | QoS by Device |
Cloud Service | • Auto Firmware Upgrade • TP-Link ID • DDNS |
NAT Forwarding | • Port Forwarding • Port Triggering • DMZ • UPnP |
IPTV | • IGMP Proxy • IGMP Snooping • Bridge • Tag VLAN |
DHCP | • Address Reservation • DHCP Client List • Server |
DDNS | • TP-Link • NO-IP • DynDNS |
Management | • Tether App • Webpage |
WIRELESS FEATURES

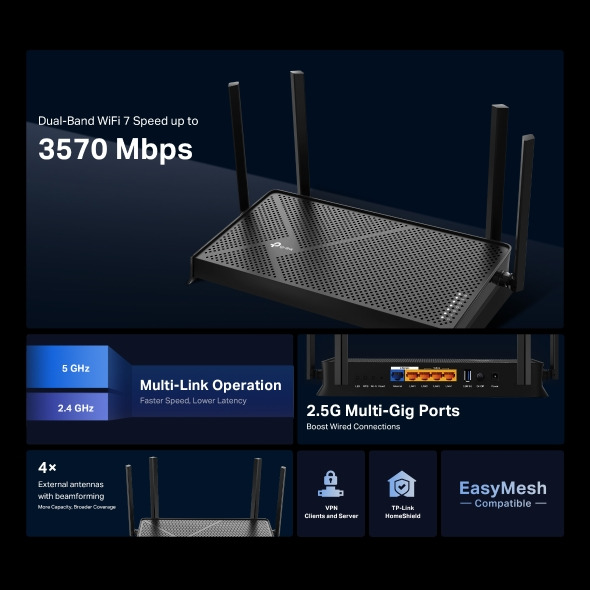

WiFi Speeds | BE3600 • 5 GHz: 2882 Mbps (802.11be) • 2.4 GHz: 688 Mbps (802.11be) |
---|---|
WiFi Range | 3 Bedroom Houses 4× External Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range |
WiFi Capacity | High Dual-Band Allocate devices to different bands for optimal performance 2×2 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple clients Airtime Fairness Improves network efficiency by limiting excessive occupation DFS Access an extra band to reduce congestion 4 Streams Connect your devices to more bandwidth |
Advanced Functions | • Multi-Link Operation (MLO) • 4K-QAM • Multi-RUs • EasyMesh-Compatible • Works with Alexa and Google Assistant • IoT Network |
Wireless Mode | • Router Mode • Access Point Mode |
SECURITY
Network Security | • SPI Firewall • Access Control • IP & MAC Binding • Application Layer Gateway • HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
---|---|
Guest Network | • 1× 5 GHz Guest Network • 1× 2.4 GHz Guest Network |
VPN Server | • OpenVPN Server • PPTP VPN Server • L2TP VPN Server • WireGuard VPN Server |
VPN Client | • Open VPN Client • PPTP VPN Client • L2TP VPN Client • WireGuard VPN Client |
WiFi Encryption | • WPA • WPA2 • WPA3 • WPA/WPA2-Enterprise (802.1x) |
Certifications
Certifications CE, FCC, RoHS
*The preceding specifications are theoretical values based on product design. To provide accurate product information, specifications, and features, the manufacture company may make real-time adjustments to the preceding specifications, so that they match the product performance, specifications, indexes, and components of the actual product. Product information is subject to such changes and adjustments without notice.
