Colour
- Black
Display
Dimensions (W×D×H) | 4.7 × 4.7 × 1.1 in (120 × 120 × 27.9 mm) |
---|
HARDWARE FEATURES
Ethernet Ports | 1× Gigabit WAN Port 4× Gigabit LAN Ports |
---|---|
Buttons | WPS/Reset Button |
Power | 12V = 1A |
SOFTWARE FEATURES
Protocols | IPv4 IPv6 |
---|---|
EasyMesh | Mesh networking creates smooth, fast, stable roaming. Archer C64 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability. |
Parental Controls | URL Filtering Time Controls |
WAN Types | Dynamic IP Static IP PPPoE(Dual Access) PPTP(Dual Access) L2TP(Dual Access) |
Quality of Service | QoS by Device |
Cloud Service | OTA Firmware Upgrade TP-Link ID DDNS |
NAT Forwarding | Port Forwarding Port Triggering UPnP DMZ |
IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
DHCP | Server DHCP Client List Address Reservation |
DDNS | TP-Link NO-IP DynDNS |
Management | Tether App Webpage |
WIRELESS FEATURES
Standards | Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
---|---|
WiFi Speeds | AC1200 5 GHz: 867 Mbps (802.11ac) 2.4 GHz: 400 Mbps (802.11n) |

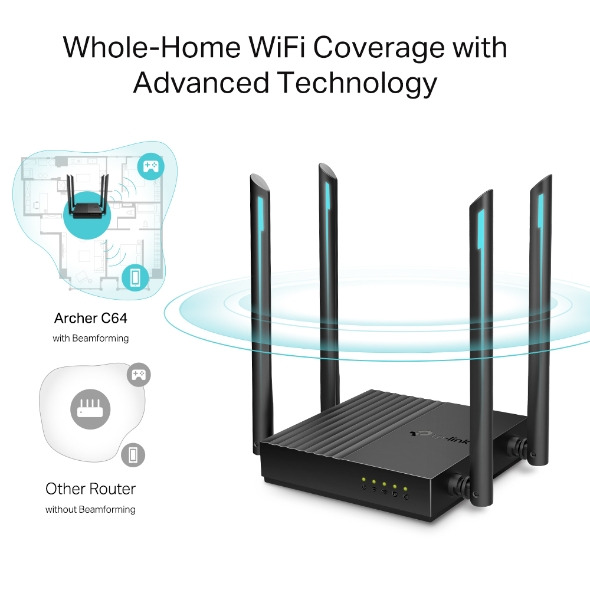

WiFi Range | 3 Bedroom Houses 4× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range |

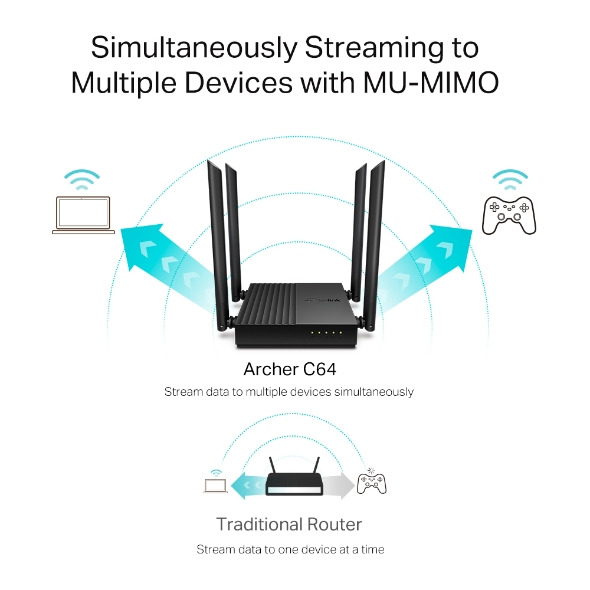

WiFi Capacity | Medium Dual-Band Allocate devices to different bands for optimal performance MU-MIMO Simultaneously communicates with multiple MU-MIMO clients Airtime Fairness Improves network efficiency by limiting excessive occupation |
Working Modes | Router Mode Access Point Mode |
SECURITY
Network Security | SPI Firewall Access Control IP and MAC Binding |
---|---|
Guest Network | 1× 2.4 GHz Guest Network 1× 5 GHz Guest Network |
WiFi Encryption | WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) |
SYSTEM
System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
---|

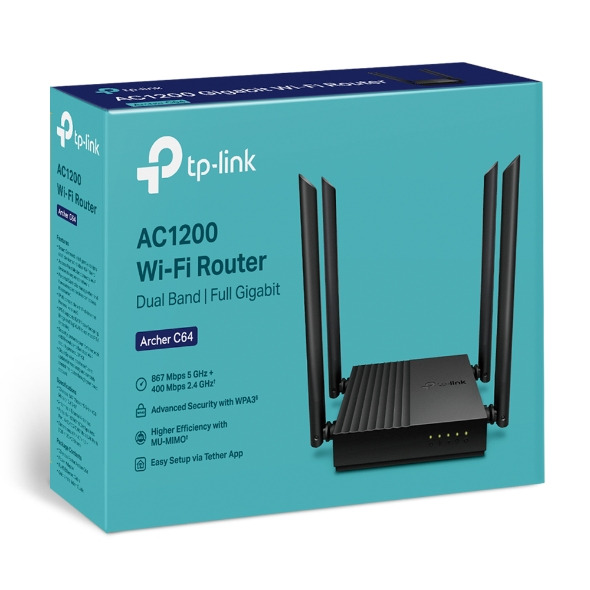

In The Box
Wireless Router Archer C64
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
Certifications
Certifications CE, RoHS
*The preceding specifications are theoretical values based on product design. To provide accurate product information, specifications, and features, the manufacture company may make real-time adjustments to the preceding specifications, so that they match the product performance, specifications, indexes, and components of the actual product. Product information is subject to such changes and adjustments without notice.
